The VS20 WAVE 2-D tube gel system provides all necessary components for 2-D electrophoresis using capillary ampholyte tube gels:
- Interchangeable modular inserts run capillary tube gels for first-dimension IEF and vertical slab gels for second-dimension SDS-PAGE using the same universal tank and lid
- Detachable cooling coil, which connects to the laboratory water supply or a recirculating chiller, enables application of high voltages to achieve precise, high-resolution focusing for pI determination
- Focus up to 10 first-dimension IEF tube gels within a single run using the dedicated 2-D insert, or use included blanking ports to run fewer gels if preferred
- Run up to four 20x20cm second-dimension slab gels using specially adapted notched glass plates with bonded 2-D spacers to accommodate 18cm tube gels
- System may also be used for 18cm IPG strips resolved in the first-dimension on the CSL-IEF flat-bed IEF system
- Two 24-sample 1mm combs included for routine SDS-PAGE techniques
Package includes:

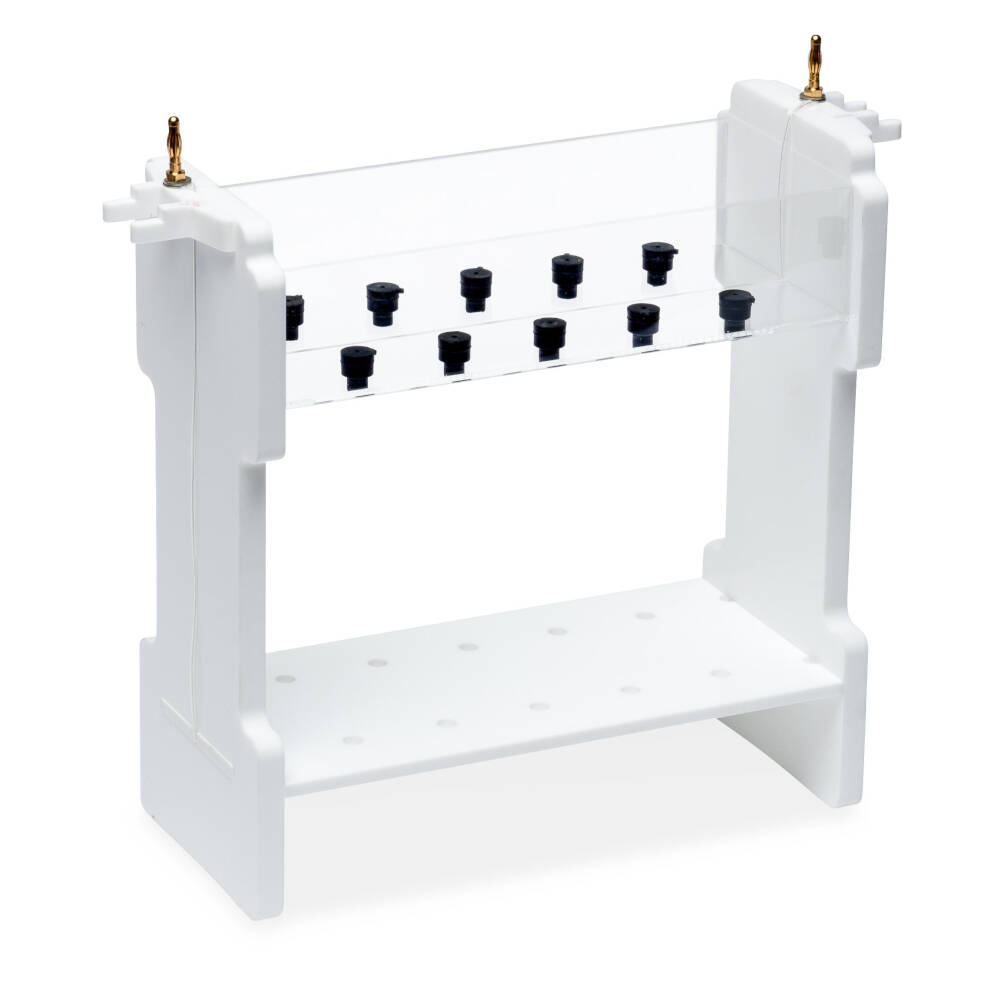

- WAVE Maxi Tube Gel insert
- Glass tubes
- Blanking ports
- IEF Conversion Kit for 18cm IPG strips and tube gels,
includes: 1 set of plain glass plates with bonded spacers, 0.6x20cm (w x h); and 2x 2-D
combs with one 3.5mm marker lane and one 18cm preparatory well
